MAP: $599.99

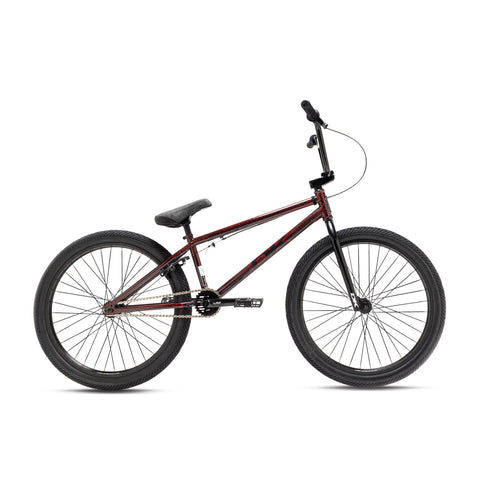

The DK Helio is everything you need to rip, flip and whip at the park, trails or on the street.
All new. All chromoly. The DK Helio 24 expands on the tried & true chromoly frame, fork, bars and cranks from our 20-inch version. Two color schemes that both look incredible, especially out in the sun. 24-inch wheels are fun on all terrain. The Helio 24 heats it up and holds it down at the park, on the street or at the trails, all at a realistic price.
Spec
| Top Tube | 21.5” |
| Chain Stay | 15” |
| Head Tube | 73.5º |
| Seat Tube | 72º |
| Frame | 100% chromoly with custom seat stay bridge, removable brake mounts |
| Fork | 100% chromoly with built-in bearing race, internally threaded pre-load bolt, tapered legs |
| Handlebar | 8.25” rise, 100% chromoly |
| Grips | DK Tsuka with press-in bar plugs |
| Stem | DK Jump top load, 53mm reach |
| Headset | Sealed integrated |
| Brake | Wise alloy U-brake |
| Lever | Wise alloy, hinged |
| BB | 19mm sealed Mid |
| Cranks | Wise tubular chromoly 3-piece, 170mm, 8-spline spindle |
| Sprocket | DK Tilt 26-tooth, alloy |
| Chain | KMC Z-510 |
| Pedals | DK Blender platform |
| Rims | Wise Rectrix2, double wall, 36mm wide, 36-hole |
| Front Hub | Wise alloy, fully sealed, 3/8” chromoly axle |
| Rear Hub | Wise alloy, fully sealed, 14mm chromoly axle, 10-tooth driver |
| Tires | 24x2.1” Multi surface design, 65psi |
| Seat | DK Stealth Pivotal |
| Seat Post | Stealth Pivotal, 25.4mm, alloy |
| Seat Post Clamp | Integrated |
| Extra Features | 3D head tube badge, removable brake mounts |
| Weight | 25.3 lbs |
