DK Zenith Disc Race Frame
DK Zenith Disc Race Frame
MAP: $899.99

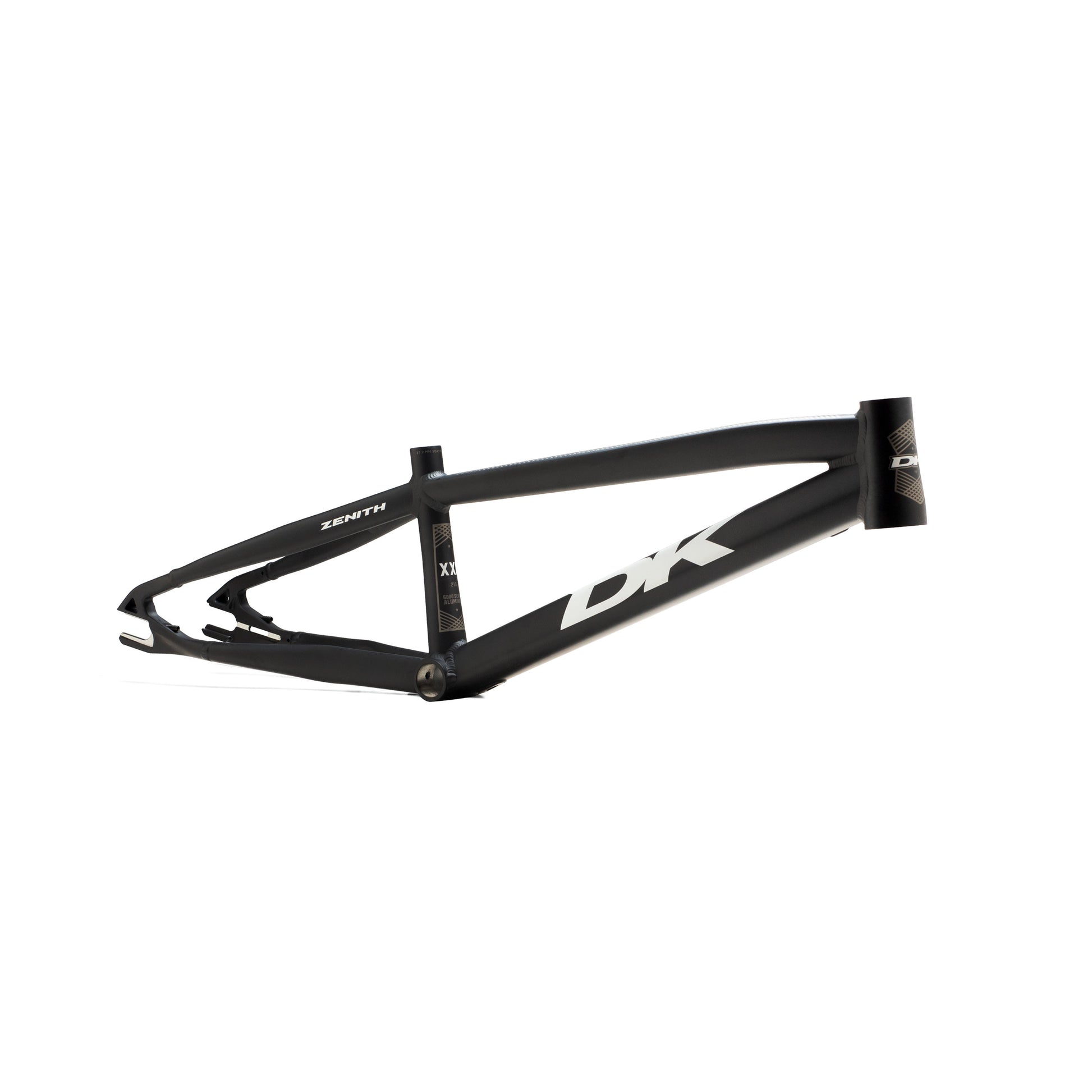

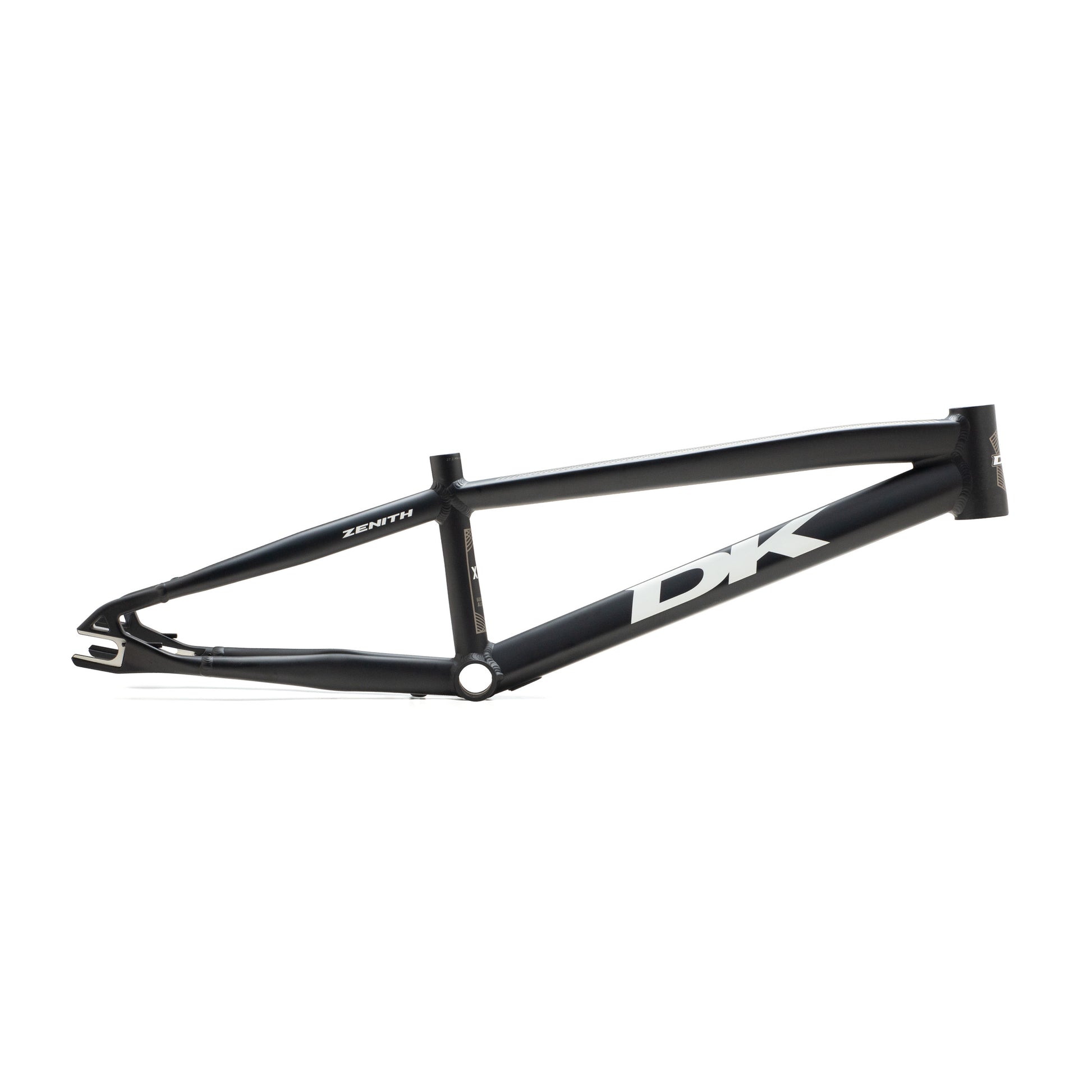

Introducing the all-new DK Zenith Disc race frame. Built on the same proven low-profile geometry as the DK Professional frame for max speed and stability. Made to accelerate. Engineered for winning.
100% custom design constructed from 6000 series hydroformed aluminum. Patent pending sliding flat mount disc brake system delivers superior braking in all conditions. Clean, compact, responsive, and stiff. Wide stance rear end is designed for max power.
Note: The DK Zenith Disc frame is compatible with flat mount disc brakes only. Flat mount is more compact and lighter than post mount. With flat mount, the rear caliper affixed with two bolts running through a flattened frame surface and then threading directly into the caliper (or an adapter affixed to the caliper).
Spec:
- Pro 20.5”, XL 21”, XX 21.5”, XXX 22”, XXXX 22.5” and Cruiser 21.75” sizes
- Built with lightweight hydroformed 6000 series aluminum tubing
- Horizontal sliding axle / brake system provides 30mm of adjustment

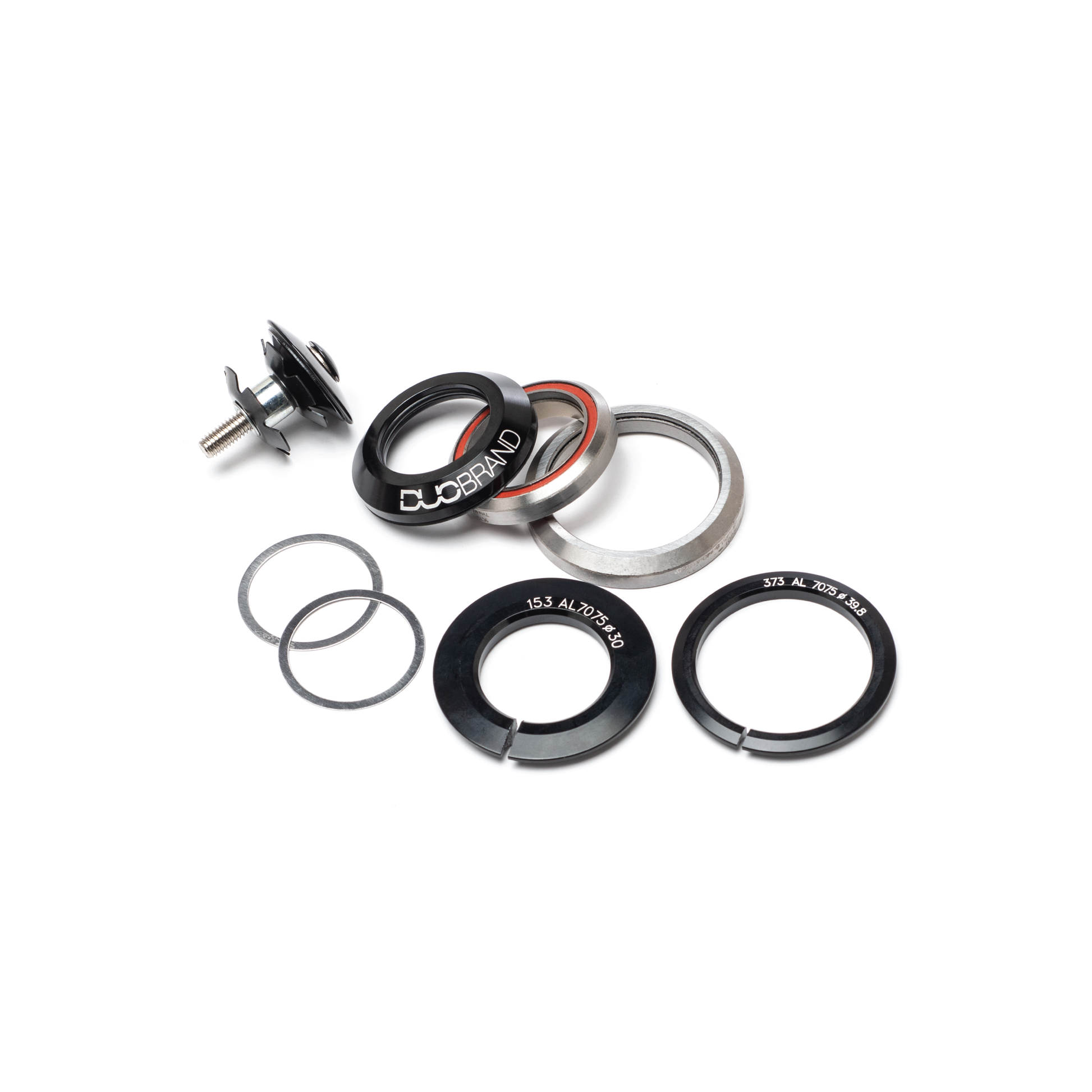

- Features a tapered 1-1/8”-1.5” head tube (headset included with an extra lower race to work with standard 1-1/8” forks)
- Trapezoidal seat mast for increased stiffness at bottom bracket
- Wide stance rear stay design adds stiffness
- Threaded Euro bottom bracket shell
- Internal brake cable routing

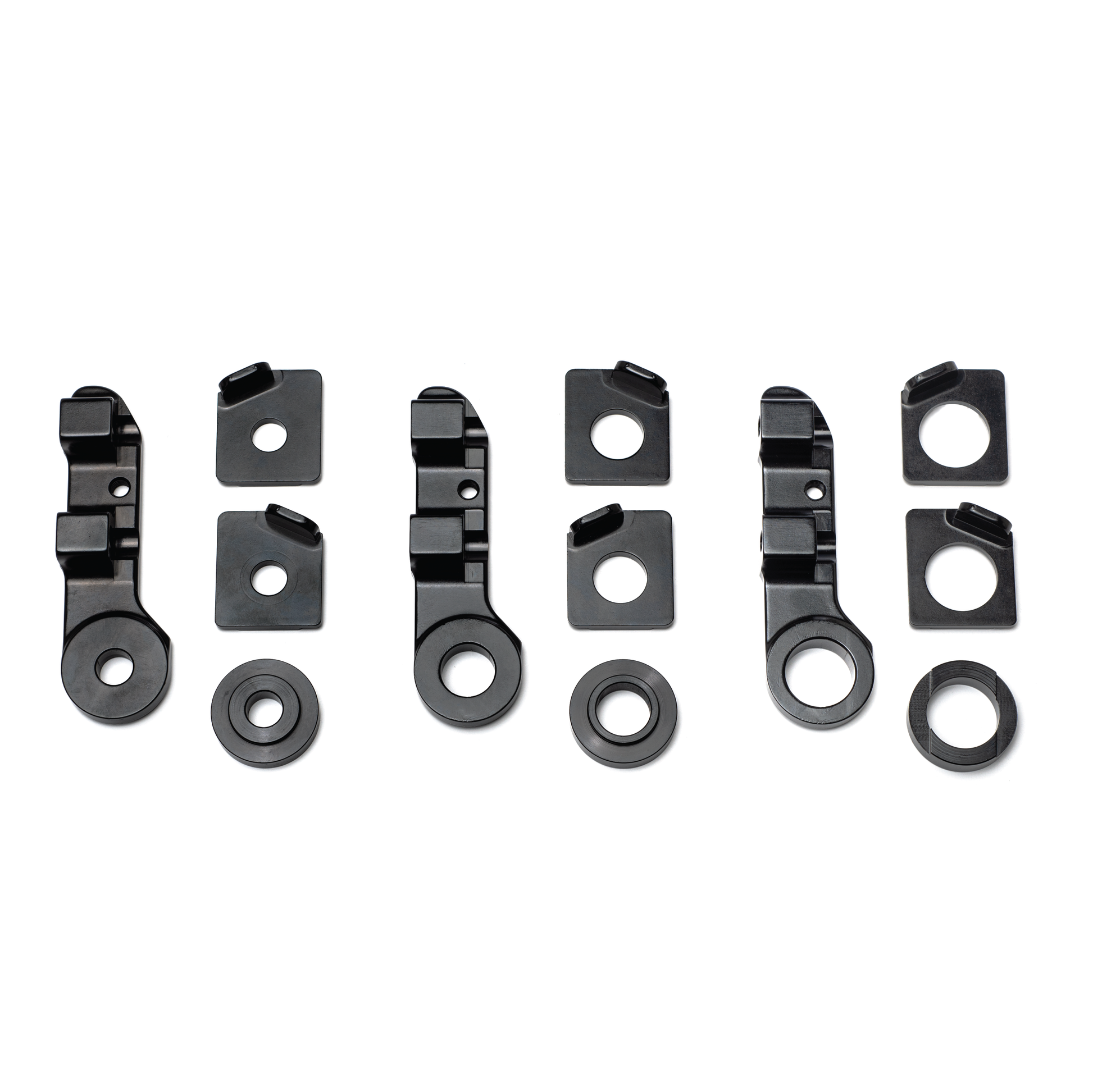

- 20mm / 15mm / 10mm dropouts (all axle hardware included) with integrated chain tensioners
- Seat post diameter: 27.2mm
| Frame Size | Pro | XL | XXL | XXX | XXXX | Cruiser |
| Top Tube | 20.5” | 21” | 21.5” | 22” | 22.5” | 21.75” |
| Chain Stay | 14.83” | 14.83” | 15” | 15” | 15” | 15.25” |
| Head Tube Angle | 74° | 74° | 74° | 74° | 74° | 75° |
| Seat Tube Angle | 72° | 72° | 72° | 72° | 72° | 72° |
| BB Drop | -35mm | -35mm | -35mm | -35mm | -35mm | -10mm |
| Seat Tube Length | 7.4” | 7.4” | 7.4” | 7.4” | 7.4” | 8” |
| Headset Type | Tapered 1.5” | Tapered 1.5” | Tapered 1.5” | Tapered 1.5” | Tapered 1.5” | Tapered 1.5” |
| Rear Axle Size | 10mm, 15mm, or 20mm | 10mm, 15mm, or 20mm | 10mm, 15mm, or 20mm | 10mm, 15mm, or 20mm | 10mm, 15mm, or 20mm | 10mm, 15mm, or 20mm |
| Weight | 3.81 lbs | 3.84 lbs | 3.9 lbs | 3.92 lbs | 3.97 lbs | 3.95 lbs |
