Verde Vertex DJ Frame
MAP: $399.99

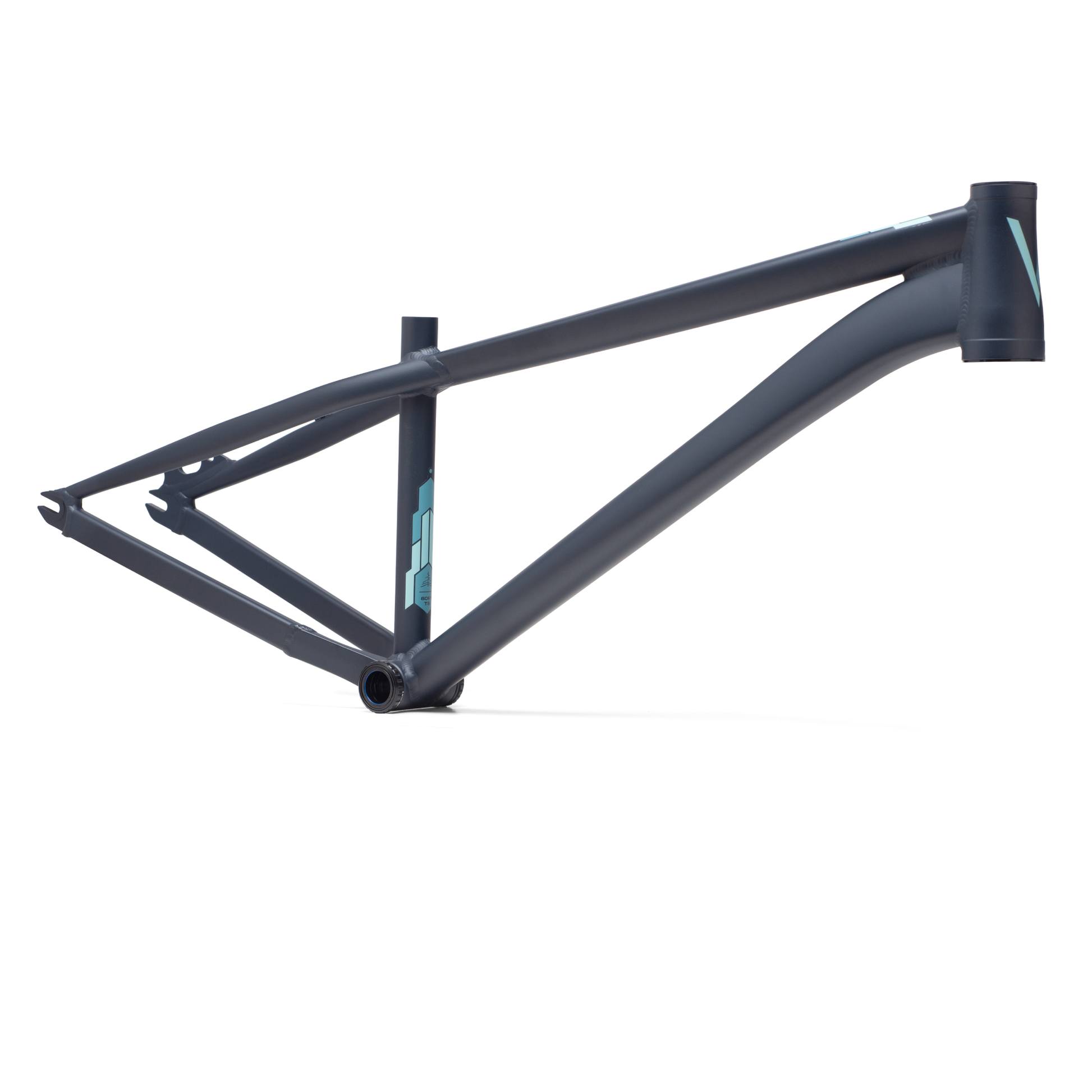

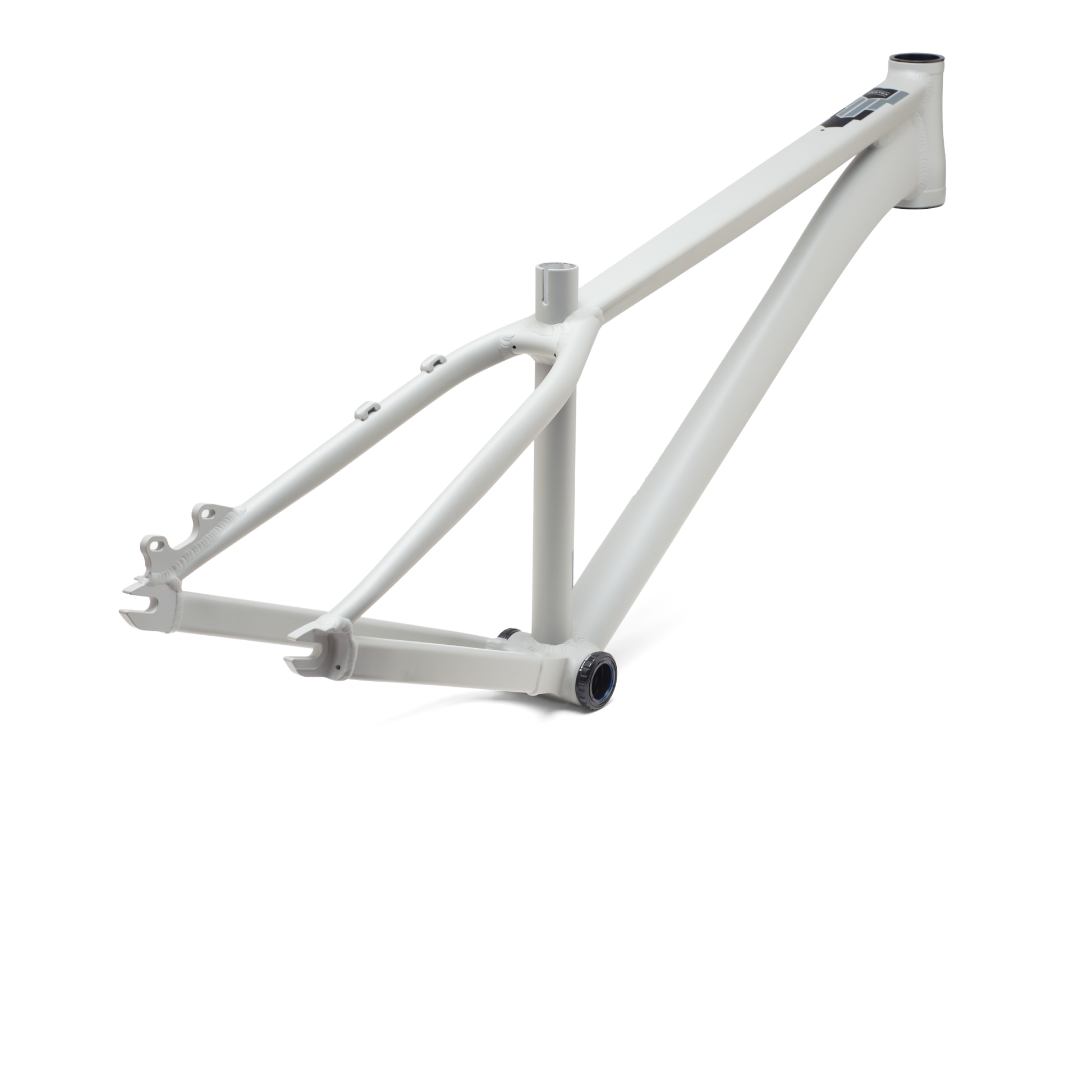

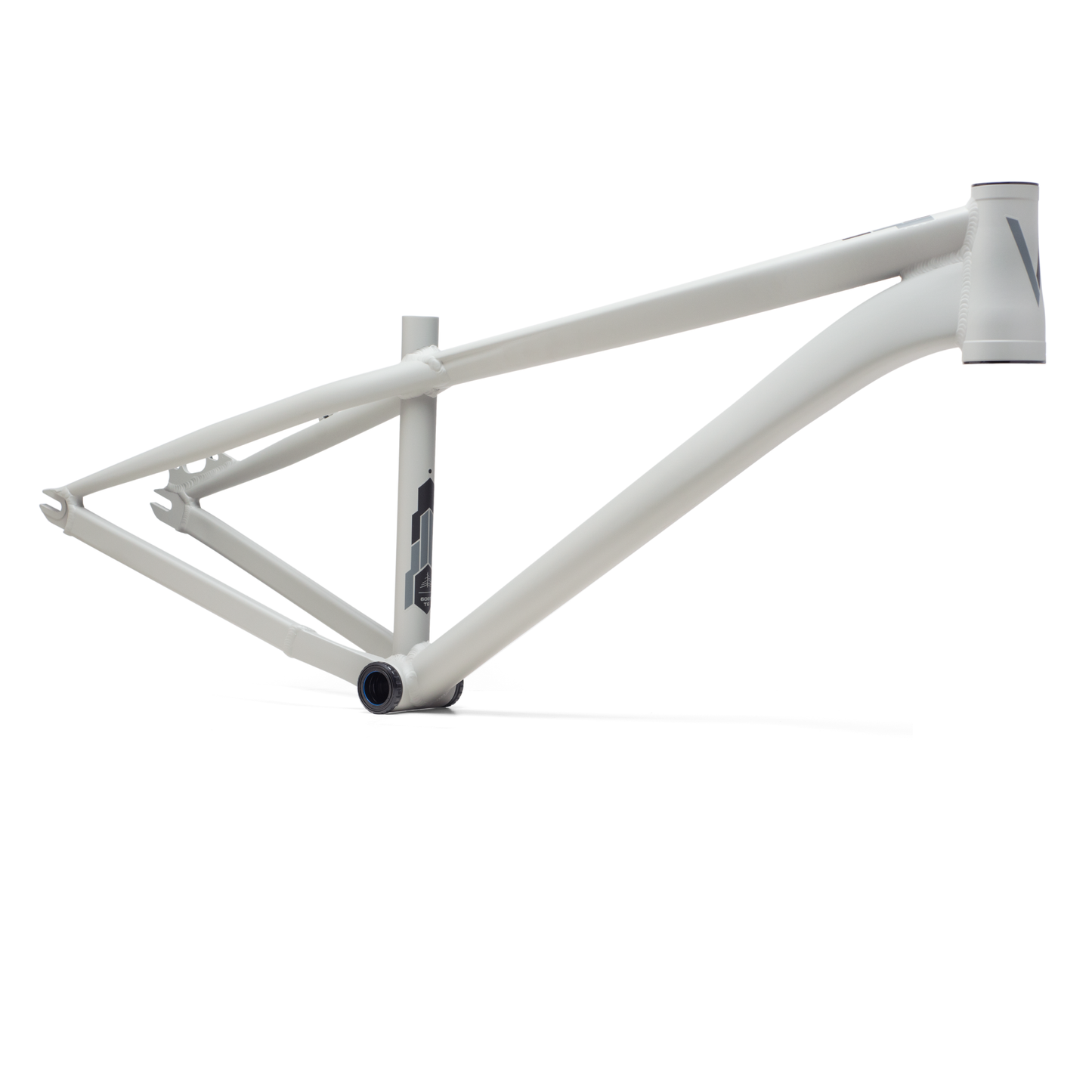

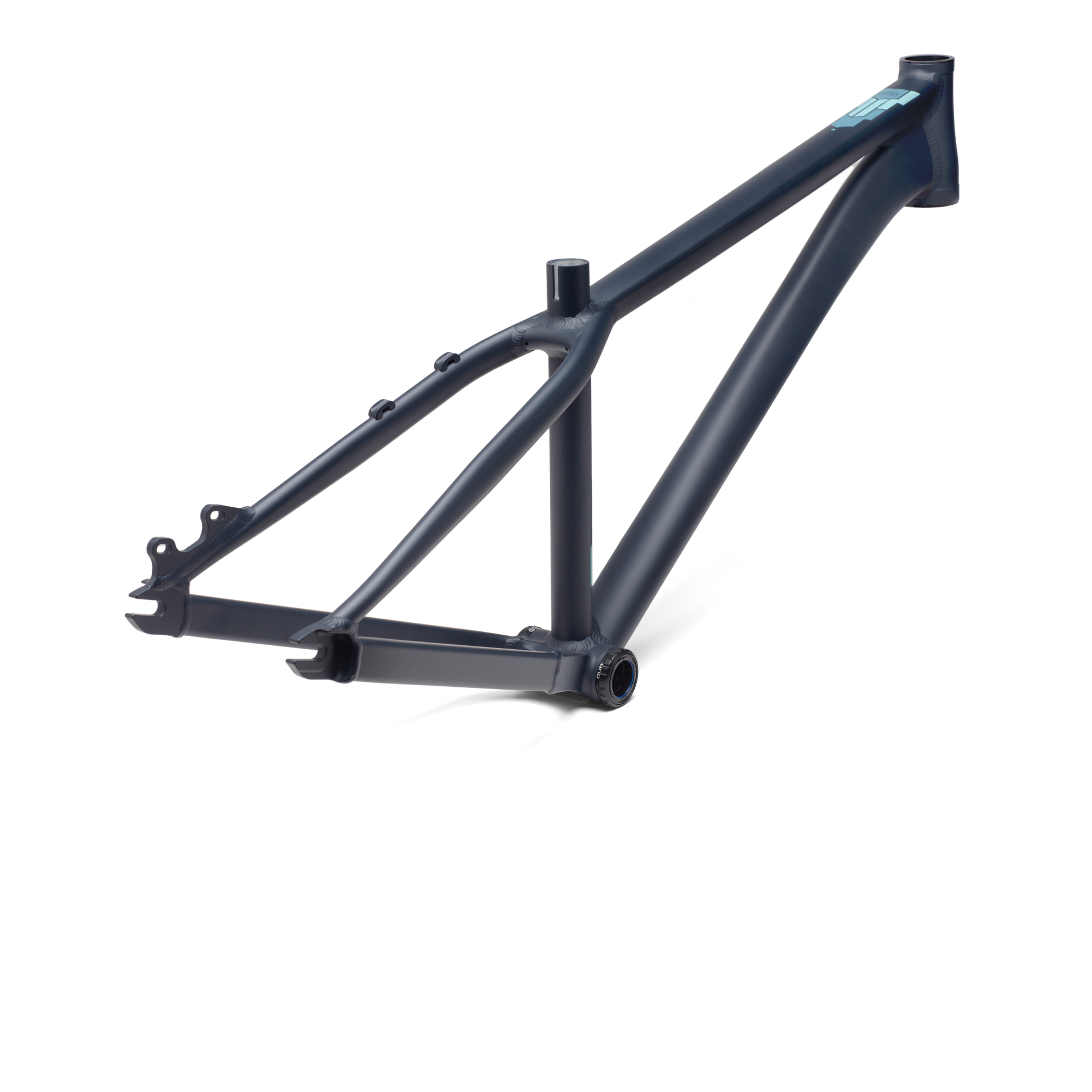

Introducing the all new Vertex DJ frame by Verde. Dreamt, drawn, prototyped, tested, perfected, and true. Crafted with 6061 aluminum tubing with internal cable routing. Custom made seat tube with wider stance to stiffen the bottom bracket. Asymmetrical BB yoke to allow sprocket clearance and shorter chain stays. Streamlined seat stays that taper to CNC machined micro dropouts. Vertex by definition means the highest point. Parks, pump tracks, or dirt. Take this frame to new heights.
Spec
Top Tube Length: 22.25” (22.97” effective) Chain Stay Length 15.25” Head Tube Angle 69º Seat Tube Angle 72º Bottom Bracket Height 12.6” Standover Height: 12.5”
Weight: 4 lbs 3 oz
Details
6061 series aluminum construction
CNC machined 1.5” tapered head tube
Sealed internal, Zero Stack 44/56, 1-1/8” to 1-1/2” tapered headset included
Internal rear brake cable routing
Custom made seat tube
Asymmetrical BB yoke
Euro bottom bracket shell
SRAM DUB BSA 73mm bottom bracket included
CNC machined micro dropouts
Tapered seat stays
Post mount disc
